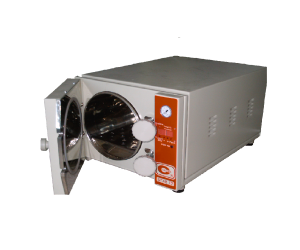

Horizontal Steam Sterilizer 22l

   STEAM STERILIZER, type STAB

The Steam Sterilizer is the device that performs the operation by which all microorganisms attached on contaminated objects, including bacterial spores, are destroyed. The result of which is the sterility state when coming into contact with human body tissues or penetrates tissues including the normally sterile vascular system. Examples: surgical instruments, dental instruments, suture material, birth attendance kits, operating room staff, operating fields, swabs and buffers, drainage tubes, implants, needles and syringes, cardiac and urinary catheters, for hemodialysis, all intravascular devices, flexible or rigid endoscopes used in invasive procedures, endoscopy-associated biopsy equipment, acupuncture needles, those used in neurology; these devices must be sterilized. Steam Sterilizers must comply with Community legislation on reforters in Medical Devices.

Autoclaves in this category have horizontal loading and are intended for use in laboratories, dry saturated steam sterilization processes, glass, plastic, metal objects that support the working temperatures specific to this type of operations. Autoclava can make 5 programs for different types of materials requiring sterilization at different temperatures.

capacities:

                    -Autoclav type STAB 07 - capacity 7 liters

                    -Autoclav type STAB 22 - capacity 22 liters

                    -Autoclav type STAB 49 - capacity 49 liters

These autoclaves do not belong to the class IIA medical devices according to European Directive 93/42 / EEC and are used only in laboratories for medium culture inactivation, infected sterilization, etc.

Technical, functional and other features:

• Supply voltage: 220 V / 50 Hz;
• Power Consumed in Stage Maintenance (at 134oC): 45% of Pmax. ;
• Operating temperature range: (121 .. 135) oC;
• Precision temperature at stabilization (at 132 oC): 2,5 oC;
• The apparatus is equipped with a temperature-time controller, with a microprocessor;
• Temperature control and regulation is done by the microprocessor;
• measuring resolution: ± 0,1 oC;
• display resolution: ± 1 oC;
• automatic steam purge;
• at the end of the cycle, the water is automatically removed from the enclosure;
• acoustic warning at the end of the cycle;
• Included accessories: condensate collector and stainless steel basket;
